Task 1 — ESP32 Web Server & HTML LED Control

1Overview

Objective. Switch an LED on and off from any phone or laptop on the same Wi-Fi network, with no app and no cloud service in between.

Problem it solves. A microcontroller normally has no screen and no buttons you can reach from across the room. Running a tiny web server on the ESP32 turns any browser into its remote control.

Summary. The ESP32 joins the Wi-Fi network as a station, starts an HTTP server on port 80 and prints its IP address on the Serial Monitor. Opening that address shows a page with Turn ON and Turn OFF buttons. Each button is a link to /on or /off; the ESP32 switches GPIO2 and sends the browser back to the main page, which now shows the new LED state.

2Concepts

A web server on a microcontroller

A web server is just a program that waits for requests and answers them. On the ESP32, the WebServer library listens on port 80, the same port every website uses. When a request arrives for a path such as /on, it runs the function I mapped to that path and sends back a response, usually HTML.

How the browser and the ESP32 talk over Wi-Fi

Both devices are on the same router, so they can reach each other by local IP address. Typing http://<ESP32-IP>/ makes the browser send an HTTP GET request. The ESP32 answers with an HTTP response: a status code (200 OK, 303 redirect, 404 not found), headers, and the page itself.

Station mode

The ESP32 can create its own network (access-point mode) or join an existing one (station mode). This project uses station mode so the phone stays on its normal Wi-Fi.

3System Design

The browser sends a GET request; the ESP32 changes the pin, then redirects back to / so the page always shows the real state.

4Hardware & Software

5Wiring / Setup

The DevKit's blue on-board LED is also on GPIO2, so it lights together with the external LED, which helps when testing.

6Implementation

// IoT Task 1 - ESP32 Web Server: switch an LED from a web page
// Board: ESP32 DevKit V1 | LED + 220 ohm resistor on GPIO2 (the on-board LED is also on GPIO2)
// Open the Serial Monitor at 115200 baud to see the IP address, then open it in a browser
// on the same Wi-Fi network.

#include <WiFi.h>
#include <WebServer.h>

const char* WIFI_SSID = "YOUR_WIFI_SSID";       // your Wi-Fi name
const char* WIFI_PASS = "YOUR_WIFI_PASSWORD";   // your Wi-Fi password

const int LED_PIN = 2;
bool ledOn = false;

WebServer server(80);   // HTTP server on port 80

// Builds the page each time it is requested, so it always shows the current LED state
String buildPage() {
  String html = "<!DOCTYPE html><html><head><meta name='viewport' content='width=device-width, initial-scale=1'>";
  html += "<title>ESP32 LED</title>";
  html += "<style>body{font-family:sans-serif;text-align:center;margin-top:40px}";
  html += "a{display:inline-block;padding:14px 28px;margin:8px;border-radius:8px;color:#fff;text-decoration:none;font-size:18px}";
  html += ".on{background:#16a34a}.off{background:#dc2626}</style></head><body>";
  html += "<h1>ESP32 LED Control</h1>";
  html += "<p>LED is <b>" + String(ledOn ? "ON" : "OFF") + "</b></p>";
  html += "<a class='on' href='/on'>Turn ON</a><a class='off' href='/off'>Turn OFF</a>";
  html += "</body></html>";
  return html;
}

void handleRoot() {
  server.send(200, "text/html", buildPage());
}

// Each button is a link. Clicking it sends an HTTP GET request (/on or /off) to the ESP32.
void handleOn() {
  ledOn = true;
  digitalWrite(LED_PIN, HIGH);
  Serial.println("GET /on  -> LED ON");
  server.sendHeader("Location", "/");   // send the browser back to the main page
  server.send(303);
}

void handleOff() {
  ledOn = false;
  digitalWrite(LED_PIN, LOW);
  Serial.println("GET /off -> LED OFF");
  server.sendHeader("Location", "/");
  server.send(303);
}

void handleNotFound() {
  server.send(404, "text/plain", "Not found");
}

void setup() {
  Serial.begin(115200);
  pinMode(LED_PIN, OUTPUT);
  digitalWrite(LED_PIN, LOW);

  WiFi.mode(WIFI_STA);                  // join an existing network as a station
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println();
  Serial.print("Open http://");
  Serial.println(WiFi.localIP());       // type this address into the browser

  server.on("/", handleRoot);           // map each URL path to a handler function
  server.on("/on", handleOn);
  server.on("/off", handleOff);
  server.onNotFound(handleNotFound);
  server.begin();
}

void loop() {
  server.handleClient();                // check for and answer incoming browser requests
}

Key sections

• HTML interface — buildPage() builds the page on every request, so the "LED is ON/OFF" text always matches the pin. The two buttons are styled links.
• How the page sends a command — clicking Turn ON follows the link /on, which is an HTTP GET request to the ESP32. server.on("/on", handleOn) maps that path to handleOn().
• Switching the LED — handleOn() and handleOff() call digitalWrite() and then answer with a 303 redirect to /.
• Serving requests — server.handleClient() in loop() checks for new requests and answers them.

7Configuration

1. Open the sketch, set WIFI_SSID and WIFI_PASS to a 2.4 GHz network.
2. Board: ESP32 Dev Module; upload.
3. Open the Serial Monitor at 115200 baud and note the printed IP address.
4. On a phone connected to the same Wi-Fi, open http://<that IP>/.

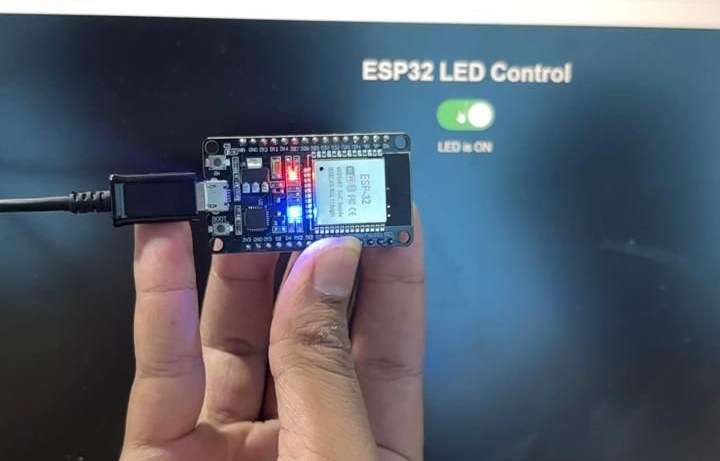

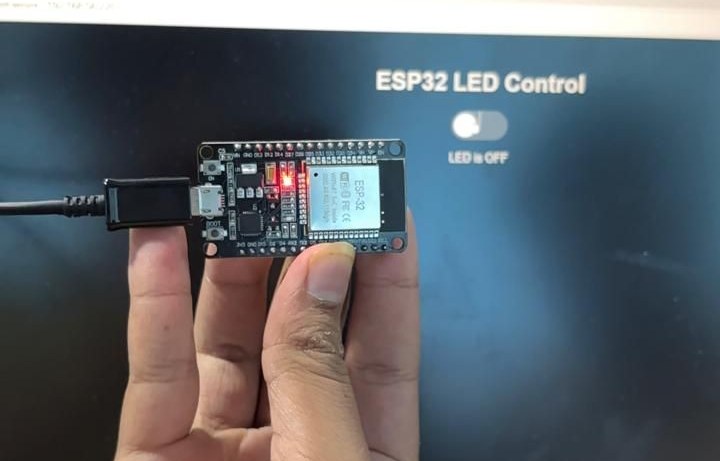

8Evidence

9Challenges & Fixes

10Reflection

This task made HTTP concrete for me. A URL path is just a name the server maps to a function, and a button on a web page is just a request. Building the page inside the ESP32 also showed why the redirect matters: the page should describe the state, not repeat the command.

11Repository Link

All code for this task: https://github.com/TringyTrongy/protosem-iot/tree/main/task1-esp32-web-server
