Task 2 — Adafruit IO Dashboard & MQTT

1Overview

Objective. Control a real bulb from anywhere in the world, not just from inside one Wi-Fi network.

Problem it solves. Task 1 only worked on the local network. Here the control goes through a cloud service: a toggle on an Adafruit IO dashboard publishes ON or OFF to a feed, and the ESP32, which is subscribed to that feed, switches a relay that powers the bulb.

2Concepts

Why Adafruit IO

Adafruit IO is a cloud service built for IoT data. It stores values in feeds, lets you build dashboards (toggles, gauges, charts) on top of them, and runs an MQTT broker the ESP32 can connect to. I didn't have to write or host a server.

MQTT in one paragraph

MQTT is a lightweight publish/subscribe protocol. Devices never talk to each other directly. A publisher sends a message to a topic on a broker, and the broker forwards it to every subscriber of that topic. Messages are tiny, and the device keeps one connection open instead of polling, which suits a microcontroller.

Topics and feeds

A feed is Adafruit IO's name for an MQTT topic. Its full topic is username/feeds/feed-key. Anything that writes to bulb-relay (the dashboard now, IFTTT in Task 3) controls the bulb, because the ESP32 only cares about the feed.

3System Design

On boot the ESP32 also asks the feed for its last value (bulbRelay->get()), so after a reset the bulb matches the dashboard.

4Hardware & Software

5Wiring / Setup

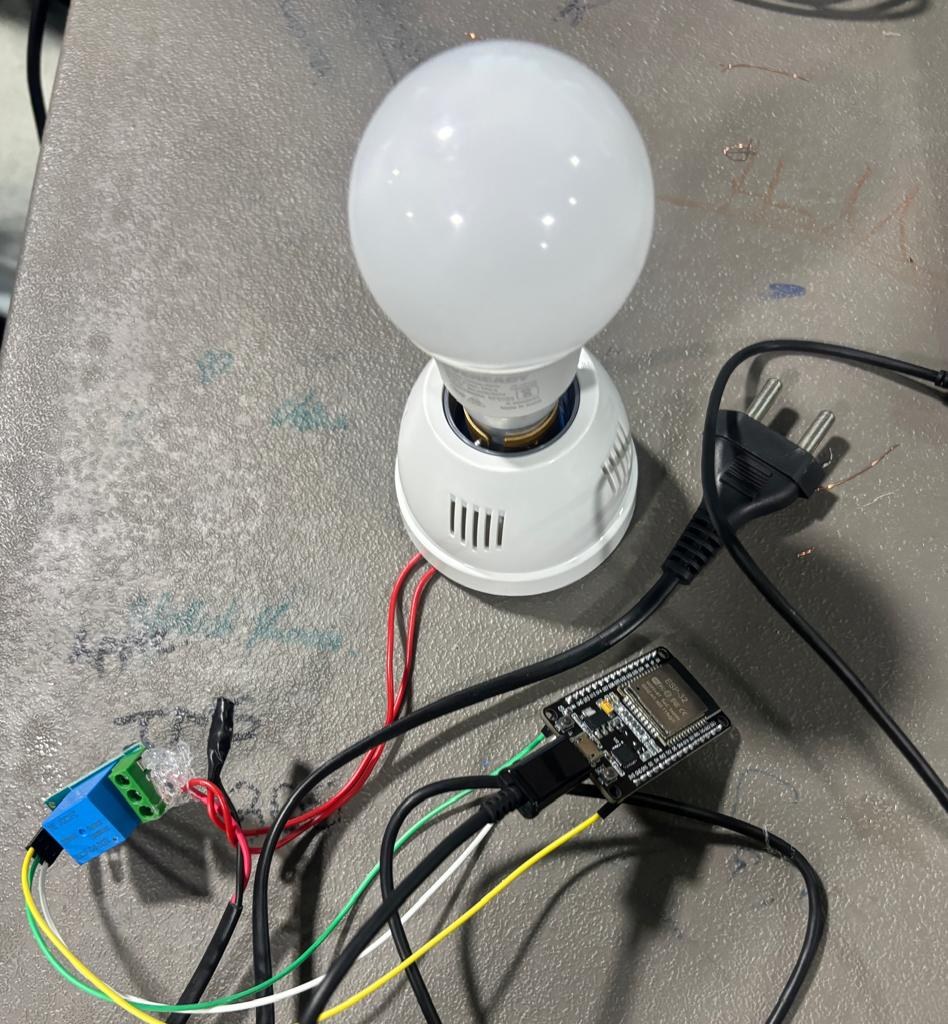

The bulb's live wire is cut and passed through the relay's COM and NO (normally open) terminals; neutral goes straight to the bulb. With the relay off, the circuit is open and the bulb is off.

6Implementation

/*
  Bulb-V2 — Adafruit IO Relay Control
  ESP32 + single-channel relay module
  Toggles the bulb ON/OFF via an Adafruit IO feed + dashboard toggle switch
*/

#include <WiFi.h>
#include "AdafruitIO_WiFi.h"
#include "arduino_secrets.h"   // auto-generated by the Web Editor's Secret tab

// ---------- Wi-Fi credentials (set these in the Secret tab: SSID, PASS) ----------
#define WIFI_SSID      SECRET_SSID
#define WIFI_PASS      SECRET_PASS

// ---------- Adafruit IO credentials (Secret tab: AIO_USERNAME, AIO_KEY) ----------
#define IO_USERNAME    SECRET_AIO_USERNAME
#define IO_KEY         SECRET_AIO_KEY

// ---------- Relay wiring ----------
#define RELAY_PIN         26     // GPIO wired to the relay's IN/signal pin
#define RELAY_ACTIVE_LOW  true   // most cheap 1-channel relay boards trigger on LOW
                                  // if the bulb turns on when you press "OFF", flip this

AdafruitIO_WiFi io(IO_USERNAME, IO_KEY, WIFI_SSID, WIFI_PASS);
AdafruitIO_Feed *bulbRelay = io.feed("bulb-relay");

void setRelay(bool on) {
  bool pinHigh = RELAY_ACTIVE_LOW ? !on : on;
  digitalWrite(RELAY_PIN, pinHigh ? HIGH : LOW);
  Serial.print("Relay set to: ");
  Serial.println(on ? "ON" : "OFF");
}

// called whenever the dashboard toggle publishes a new value
void handleMessage(AdafruitIO_Data *data) {
  String val = data->value();
  Serial.print("Feed message received: ");
  Serial.println(val);

  bool on = (val == "1" || val.equalsIgnoreCase("ON"));
  setRelay(on);
}

void setup() {
  Serial.begin(115200);

  pinMode(RELAY_PIN, OUTPUT);
  setRelay(false); // start with bulb OFF

  Serial.print("Connecting to Adafruit IO");
  io.connect();

  // subscribe to the feed
  bulbRelay->onMessage(handleMessage);

  while (io.status() < AIO_CONNECTED) {
    Serial.print(".");
    delay(500);
  }
  Serial.println();
  Serial.println(io.statusText());

  // pull the last known state from the dashboard on boot
  bulbRelay->get();
}

void loop() {
  io.run(); // keeps the MQTT connection alive — must be called every loop, unblocked
}

Key sections

• Connecting — AdafruitIO_WiFi io(...) holds the Wi-Fi and Adafruit IO credentials; io.connect() joins Wi-Fi and opens the MQTT connection.
• Subscribing — io.feed("bulb-relay") picks the topic and bulbRelay->onMessage(handleMessage) registers the function that runs for every new value.
• Acting on a message — handleMessage() accepts "1" or "ON" as on and anything else as off, then calls setRelay().
• Active-LOW relay — RELAY_ACTIVE_LOW inverts the pin, because this relay board closes its contact when IN is pulled LOW.
• Keeping the connection alive — io.run() must run on every loop; it processes incoming messages and sends MQTT keep-alive pings.

7Configuration

1. Signed up at io.adafruit.com (username TringyTrongy).

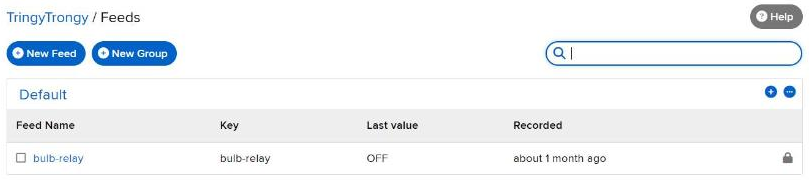

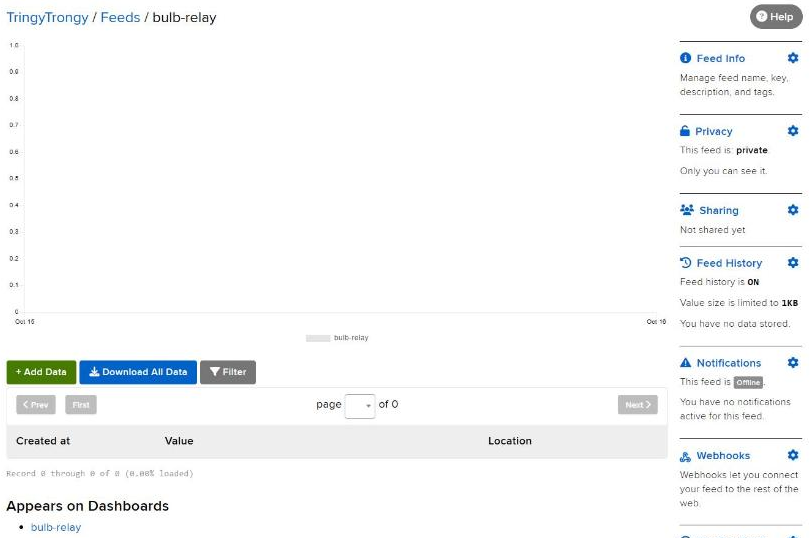

2. Feeds → New Feed → bulb-relay.

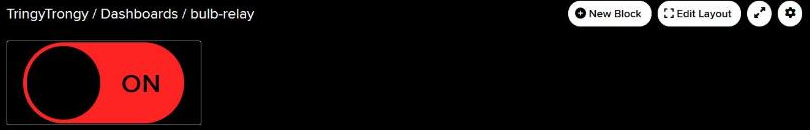

3. Dashboards → New Dashboard → bulb-relay → New Block → Toggle, linked to the bulb-relay feed (button values ON / OFF).
4. Copied the username and Active Key from the key icon into the sketch's secrets.
5. Flashed the ESP32 and opened the Serial Monitor to watch messages arrive.

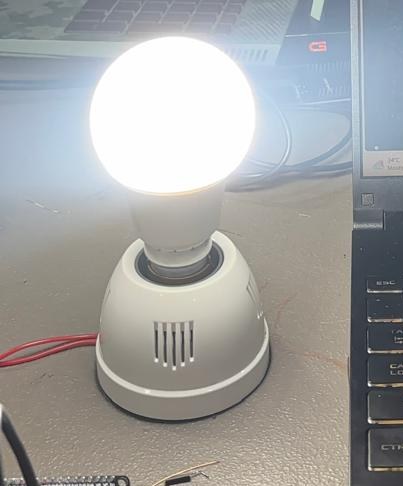

8Evidence

9Challenges & Fixes

10Reflection

MQTT changed how I think about devices. The ESP32 doesn't know or care who is controlling it; it just listens to a topic. That makes adding a second controller almost free, which is exactly what Task 3 does with a voice assistant. I also learned to check what voltage a module expects before trusting a GPIO pin to drive it.

11Repository Link

All code for this task: https://github.com/TringyTrongy/protosem-iot/tree/main/task2-adafruit-io-mqtt
